Understanding the RAG Pipeline
A typical Retrieval-Augmented Generation system operates through five major stages:
- Knowledge ingestion
- Embedding and vector storage
- Query processing and retrieval
- AI response generation
- Response validation
Together, these stages allow AI systems to retrieve relevant information and produce responses that are contextual, reliable, and traceable.

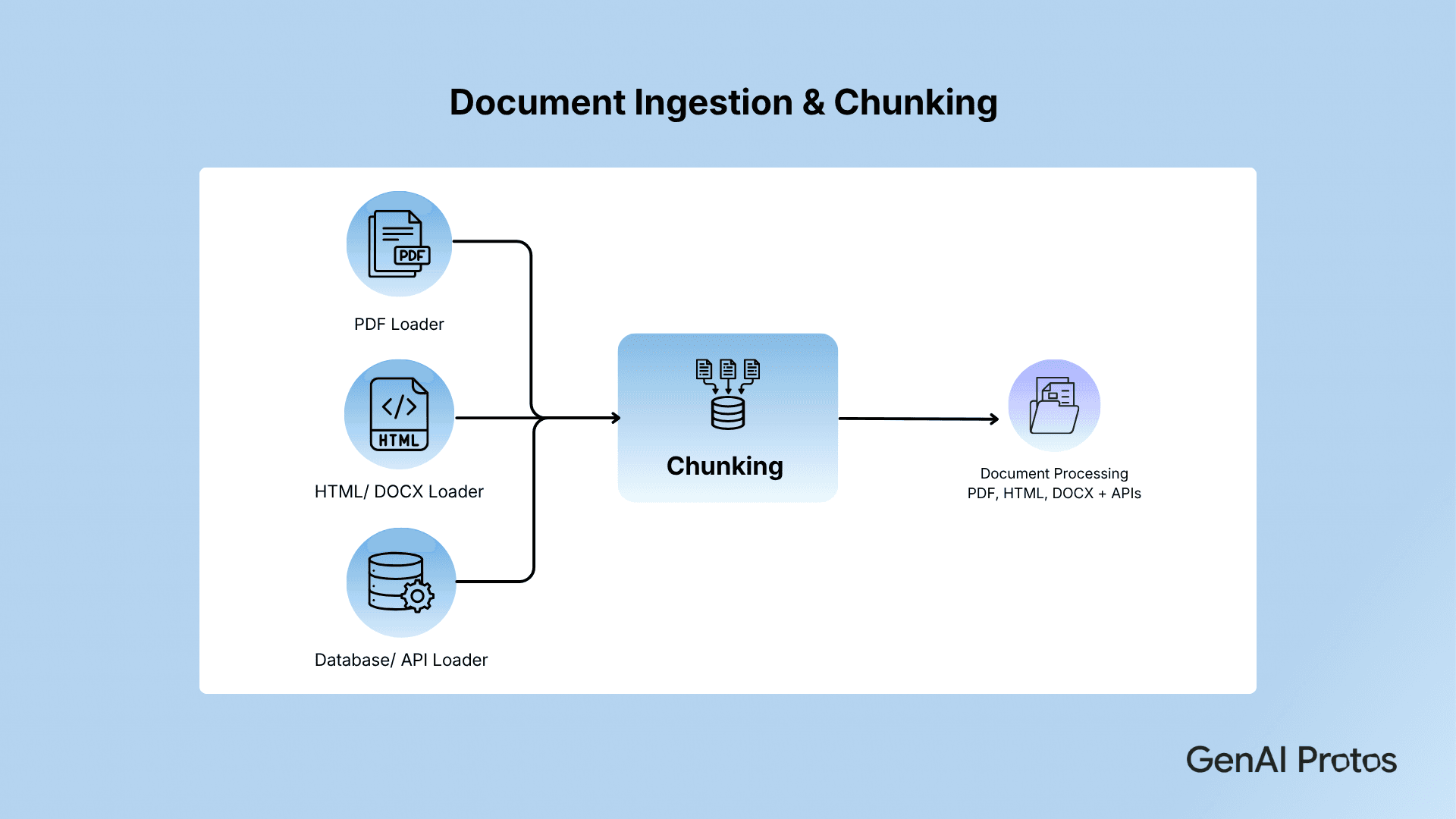

1. Knowledge Ingestion and Document Chunking
The first step in a RAG system is collecting and preparing information from various data sources. Organizations typically store knowledge across multiple formats such as:
- PDFs and reports
- HTML pages and internal documentation
- Databases and APIs
- Enterprise knowledge repositories
During the ingestion stage, these documents are loaded into the system using specialized data connectors. Once the content is imported, it is divided into smaller segments known as chunks.
Chunking is necessary because language models can only process a limited amount of text at once. Instead of feeding entire documents to the AI system, information is split into manageable sections that can later be retrieved efficiently.
Effective chunking strategies often include:
- Segments of approximately 200–1000 tokens
- Slight overlap between chunks to preserve context
- Logical segmentation based on headings or paragraphs
This step ensures that information is stored in structured units that can be easily searched and retrieved during user queries.

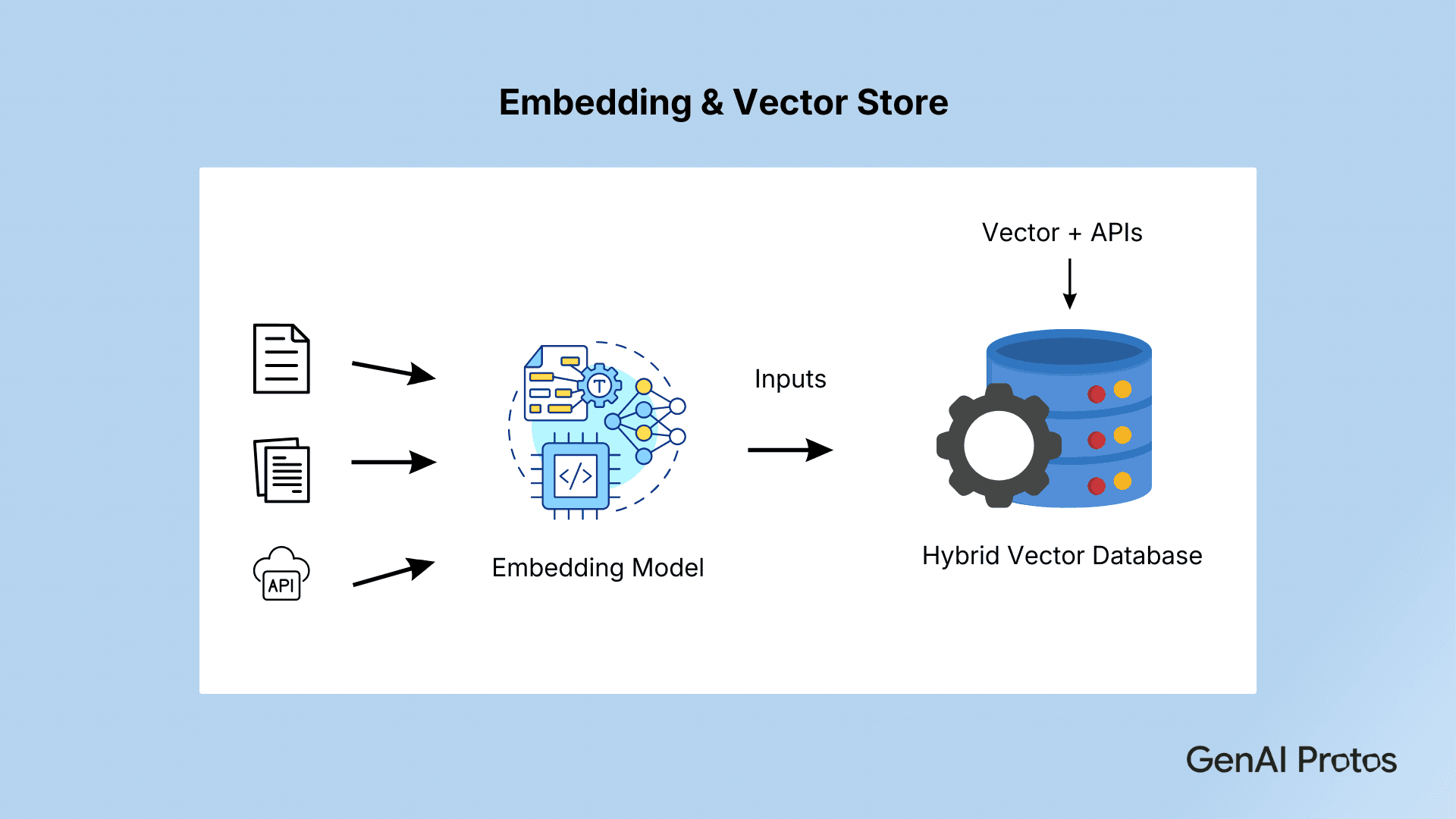

2. Embedding Generation and Vector Storage
Once documents are processed and chunked, the next step is transforming the text into embeddings.
Embeddings are numerical representations of text that capture the meaning and context of words or sentences. By converting text into vectors, AI systems can compare semantic similarity rather than relying on exact keyword matches.
Each document chunk is converted into a high-dimensional vector and stored inside a vector database. These databases are designed specifically for efficient similarity search across large volumes of data.
Vector storage enables the system to:
- Index knowledge efficiently
- Retrieve information based on meaning
- Support large-scale semantic search
Many RAG implementations use hybrid search systems, which combine vector similarity search with traditional keyword search. This approach helps the system identify relevant information using both context and keyword signals.

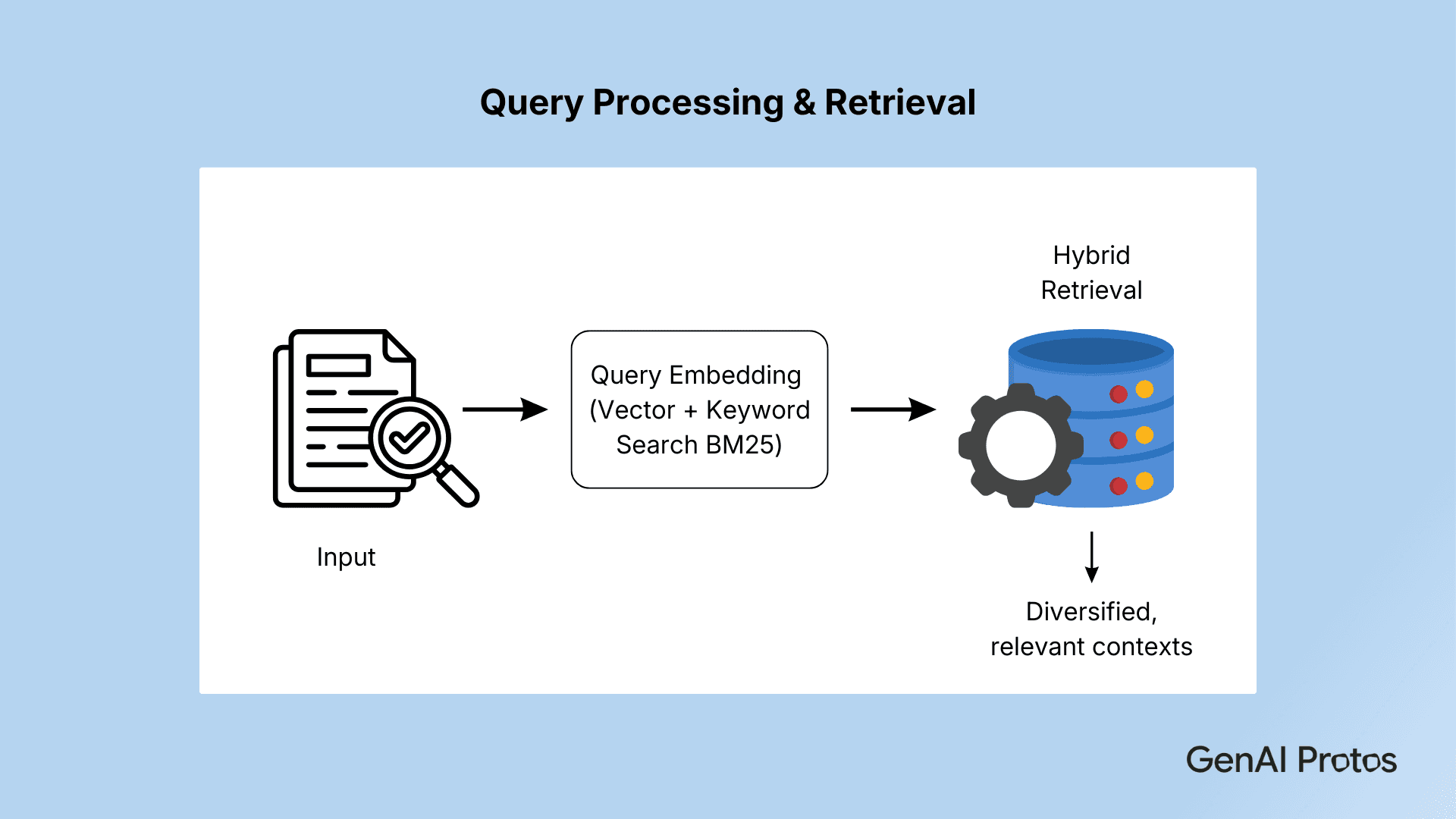

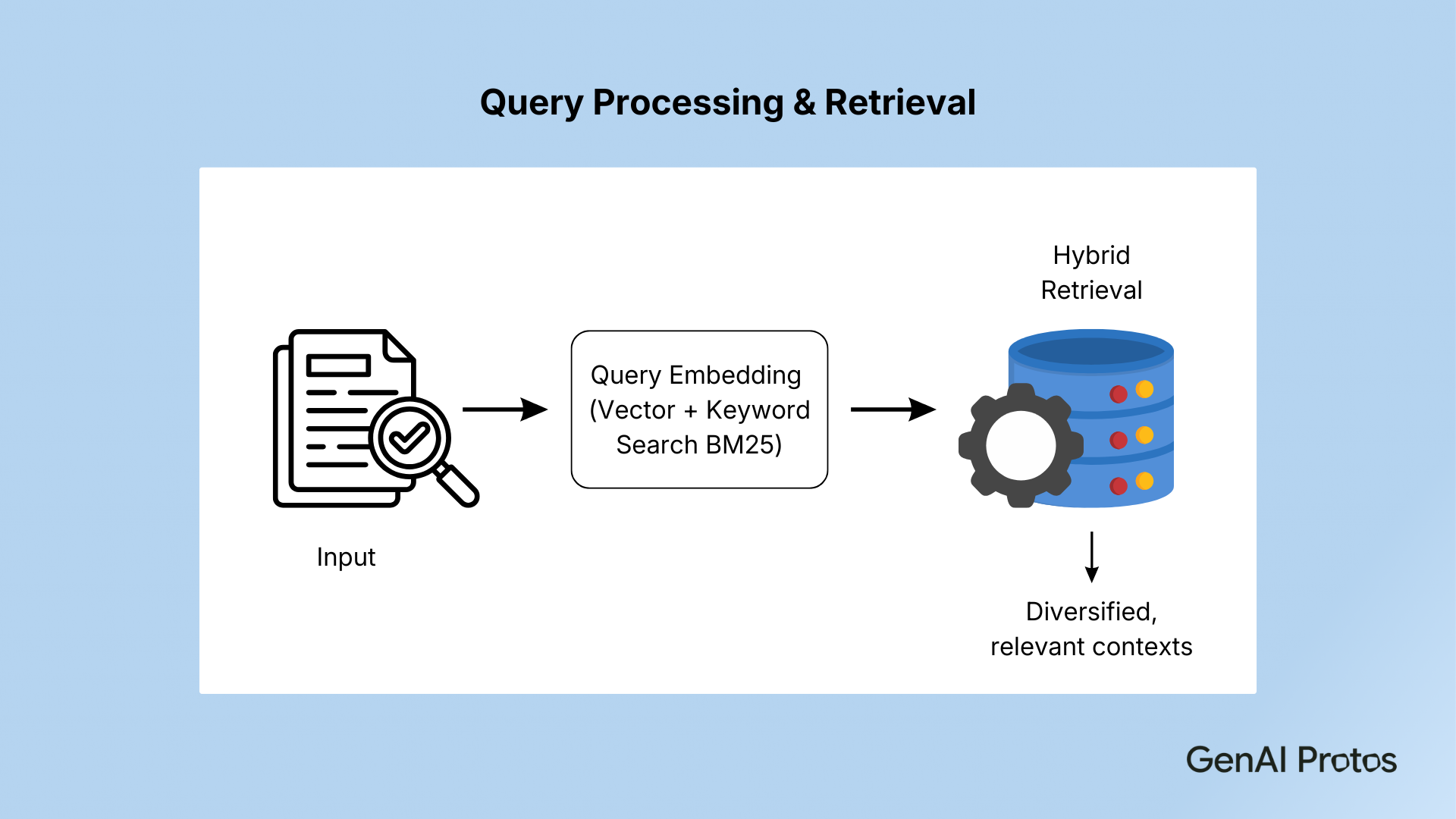

3. Query Processing and Intelligent Retrieval
When a user submits a query, the RAG system begins the retrieval process.
The user’s question is first converted into an embedding vector, just like the document chunks. The system then compares this query vector with stored document embeddings to identify the most relevant pieces of information.
To improve accuracy, modern RAG systems often use multiple retrieval strategies:
Semantic Vector Search
Identifies document chunks with meanings similar to the user’s query.
Keyword-Based Search
Uses ranking techniques such as BM25 to detect documents containing important keywords.
Hybrid Retrieval
Combines both methods to improve relevance and coverage.
After potential results are retrieved, the system may perform re-ranking. A specialized ranking model evaluates the retrieved documents and selects the most useful pieces of context for the language model.
This layered retrieval process ensures that only high-quality and relevant information is sent to the AI model.

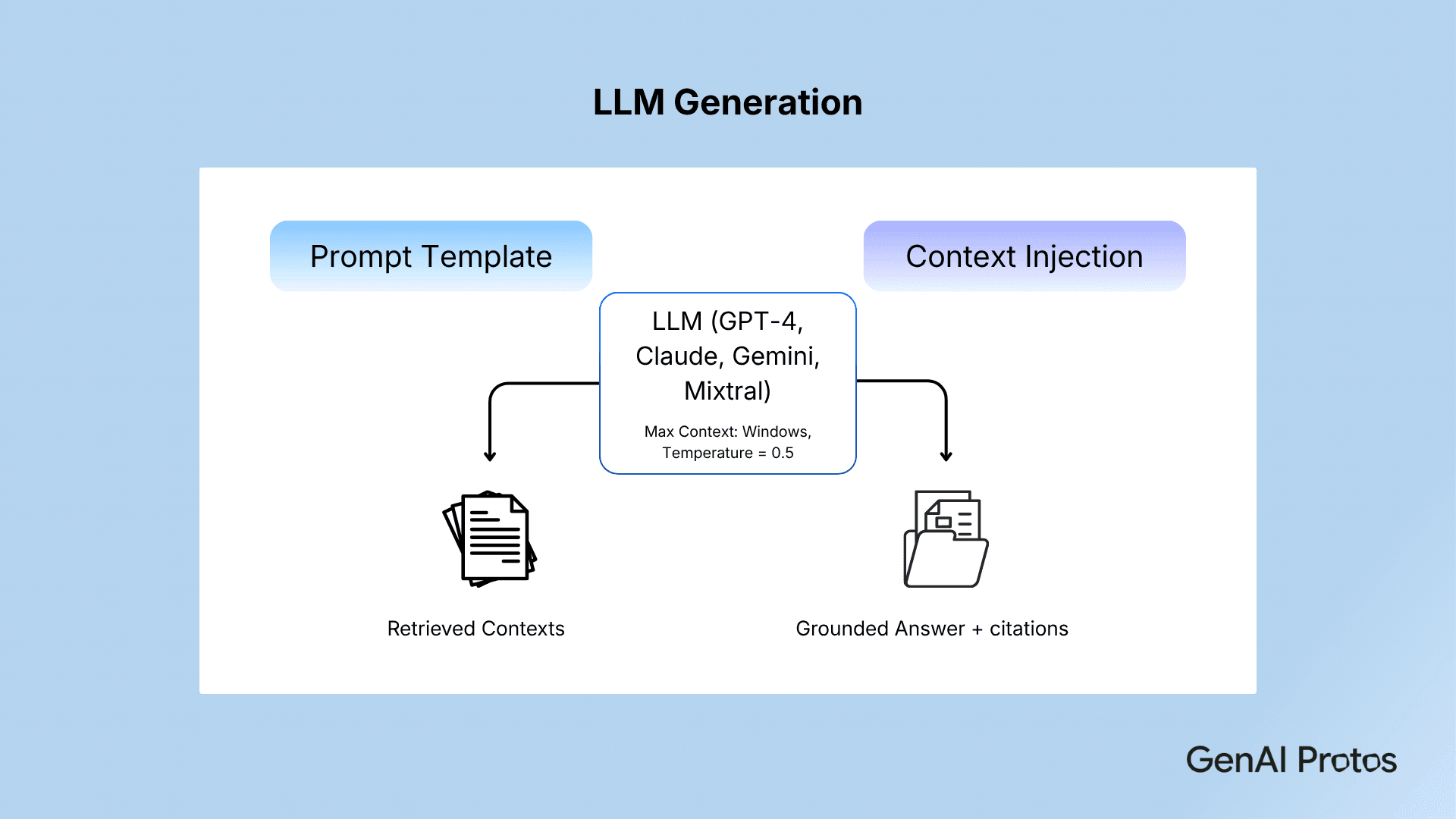

4. AI Response Generation
Once the most relevant document chunks are identified, they are passed to the language model for response generation.
The retrieved information is inserted into a prompt template, which structures how the AI should use the provided context. This step is often called context injection.
Instead of generating answers purely from its training knowledge, the model now uses retrieved data as evidence while constructing the response.
The final answer is generated using three key inputs:
- The user’s query
- Retrieved contextual information
- Prompt instructions guiding the model
This approach produces responses that are grounded in real data rather than speculation.
One of the most valuable aspects of RAG systems is the ability to include citations or references to source documents, improving transparency and trust in the output.

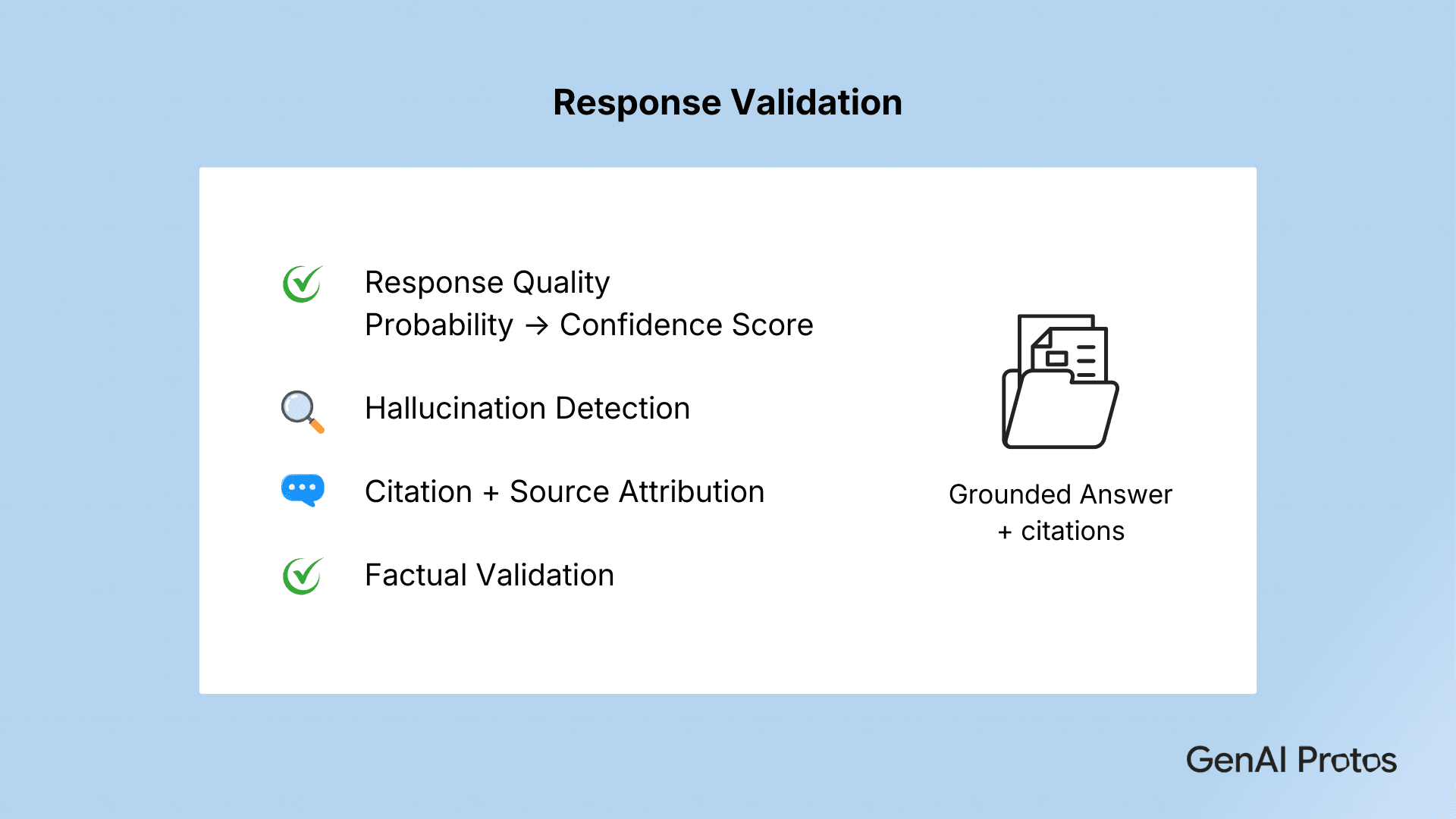

5. Response Validation and Quality Control
After the AI generates a response, additional validation mechanisms help ensure that the output is reliable.
These mechanisms verify whether the generated answer is consistent with the retrieved context and meets quality standards.
Common validation methods include:
Confidence scoring – estimating the reliability of the generated response.
Hallucination detection – identifying outputs that are not supported by retrieved data.
Source attribution – confirming that responses reference the appropriate documents.
Factual validation – ensuring alignment between generated text and supporting evidence.
These safeguards are particularly important for enterprise AI systems, where incorrect information can impact decision-making.
Security, Guardrails, and Monitoring
RAG systems often operate on sensitive enterprise data, making security and governance essential.
Modern implementations include several protective mechanisms such as:
- Role-Based Access Control (RBAC) to restrict access to authorized users
- Prompt injection protection to prevent malicious inputs
- PII detection and redaction for privacy protection
- Toxicity filtering for responsible AI outputs
In addition, monitoring tools track system performance using metrics like:
- Response latency
- Retrieval accuracy
- query success rates
These monitoring capabilities help maintain reliability and optimize system performance over time.
Conclusion
Retrieval-Augmented Generation enhances AI systems by combining knowledge retrieval with generative models, enabling responses that are accurate, contextual, and transparent.
